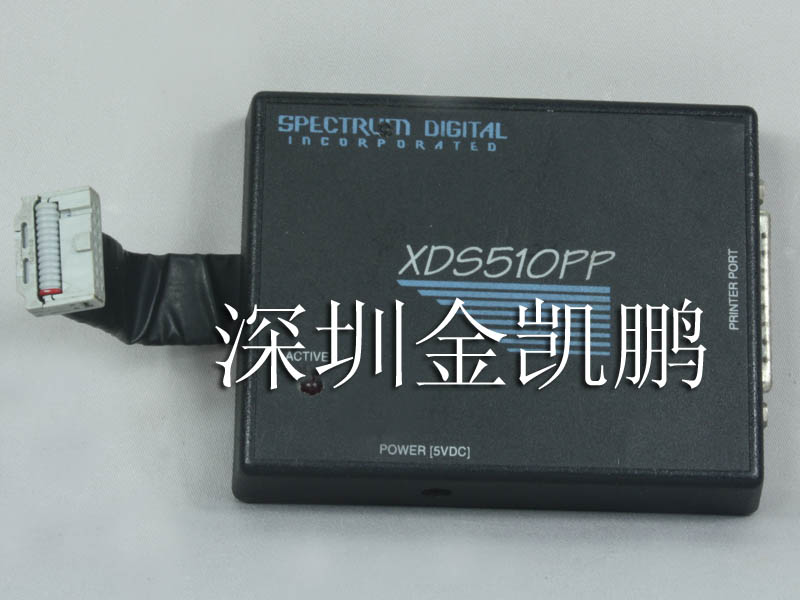

XDS510PP PLUS JTAG Scan Path Emulator Pod
XDS510PP PLUS JTAG Emulator
Part #: 701014
OEM Part #: TMDS3P701014
Rev Level: A

Price: $495.00
Hardware Features
Supports Texas Instruments Digital Signal Processors and Microcontrollers with JTAG interface:
F24xx
C54xx
C67xx
C62xx
C642x
C64x+
C674x
DaVinci?
TMS470
OMAP?
F28xx
C55xx
C672x
C641x
C645x
DM64x
DM355
TMS570
Cortex?
Operates with parallel port on PC or laptop, no internal adapter required
Supports bi-directional, ECP, and EPP transfers
Compatible with +3.3V or +5V processors
Powered by target or supplied adapter
14-pin JTAG interface
Compatible with SPI110 Opto Pod
Compatible with 4 Channel JTAG Expander

Software Features

Compatible with the Full License of Code Composer Studio versions 3.x and v4 from Texas Instruments
(Not compatible with the DSK/eZdsp/EVM Tools versions of Code Composer Studio)
Compatible with Windows 2000, XP, and Vista
Operates with "SDFlash" Programming Utility from Spectrum Digital
Compatible with Programming utilities developed by Texas Instruments

What''s Included !

XDS510PP PLUS JTAG Emulator
+5 Volt power supply
Parallel port cable
CD-ROM with drivers
Installation Instructions
Do You Need ?

Code Composer Studio
4 Channel JTAG Expander
SPI110LV Opto Pod
Target Boards (EVM, DSKs, eZdsps)
Low Voltage Adapter
14-20 pin Adapter
