Extron（愛思創） DVI 201 Tx/Rx 發送器/接收器組

Extron（愛思創） DVI 201 Tx/Rx 發送器/接收器組

DVI 雙絞線延長器

Extron（愛思創） DVI 201 Tx/Rx 發送器/接收器組是一組發送器和接收器，可以傳輸 DVI 或 HDMI 信號，并且傳輸距離大大超過標準 DVI 電纜的距離限制。與兩根經濟且方便集成的 CAT 5、CAT 5e、CAT 6、CAT 7 類或 Extron STP201 電纜相連接，Extron（愛思創） DVI 201 Tx/Rx 發送器/接收器組發送器和接收器配合使用時可以將 HDTV 和 XGA（1024X768）的單鏈路 DVI-D 或 HDMI 信號傳送超過 200''（60 m）的距離

特性
通過兩根 CAT 5 類電纜發送單鏈路 DVI-D/HDMI 和 RS-232 信號
通過標準 CAT 5e 電纜將 720p、1080i 和 XGA（1024x768）信號傳送 超過 200''（60 m）的距離，將 1080p/60 和 1920x1200 信號傳送超過 100''（30 m）的距離
Extron STP201 數字雙絞線電纜可針對外界干擾提供額外保護，從而增加 信號傳輸?shù)目傮w距離
DVI 輸入環通
支持 DDC 和 HDCP
發送器和接收器的遠程供電
雙向 RS-232/紅外直通

型號 產品說明 產品編號
Extron（愛思創） DVI 201 Tx/Rx 發送器/接收器組 60-734-03
Extron（愛思創） DVI 201 Tx 發送器 60-734-12
Extron（愛思創） DVI 201 Rx 接收器 60-734-13

快速參考
? Extron（愛思創） DVI 201 (宣傳冊)
? DVI 201 and DVI 201 Decora User Guide (用戶手冊)

隨附附件
? PS 1210 C 12V, 1A Power Supply featuring ZipClip?, Captive Screw 70-775-01
? DVID SL Pro/6 DVI Cable: Single Link DVI-D Male to Male - 6'' (1.8 m) 26-649-06

可選附件
? RFF 系列 基礎型機架空白面板套件
? DVID DL Pro 系列 雙鏈路 DVI-D 插頭對插頭電纜
? STP201 26 AWG 屏蔽數字雙絞線電纜
? STP RJ-45 插頭 用于 Extron STP201 數字雙絞線電纜的屏蔽 RJ45 插頭
? HDMI DVI-D 系列 標準速度 HDMI 至 DVI-D 電纜
? HDMIF-DVIDM HDMI 插座對 DVI-D 插頭適配器
? HDMIM-DVIDF HDMI 插頭對 DVI-D 插座適配器
? HDMIF-DVIDF HDMI 插座對 DVI-D 插座適配器
? MBU 125 Low-Profile Mount Kit for 1/4 and 1/2 Rack Width, Two-Piece Enclosures
? MBD 129 Through-Desk Mount Kit for 1/4 or 1/2 Rack Width, Two-Piece Enclosures
? PMK 200 Pole Mount Kit for One 1/4 or 1/2 Rack Width, Two-Piece Enclosures
? RSF 123 3.5" 深的機架擱板套件、

技術參數：
Extron（愛思創） DVI 201 Tx/Rx 發送器/接收器組

NOTE *Appropriate DVI-D to HDMI cables or adapters are required for HDMI signal input/output.
Also, an optional Extron HDMI-to-DVI adapter is required in order to transmit a CEC signal.
Video
Maximum data rate 4.95 Gbps (1.65 Gbps per color)
Maximum pixel clock 165 MHz
Resolution range 1920x1200 or 1080p @ 60 Hz
Formats RGB and YCbCr digital video
Standards DVI 1.0, HDMI

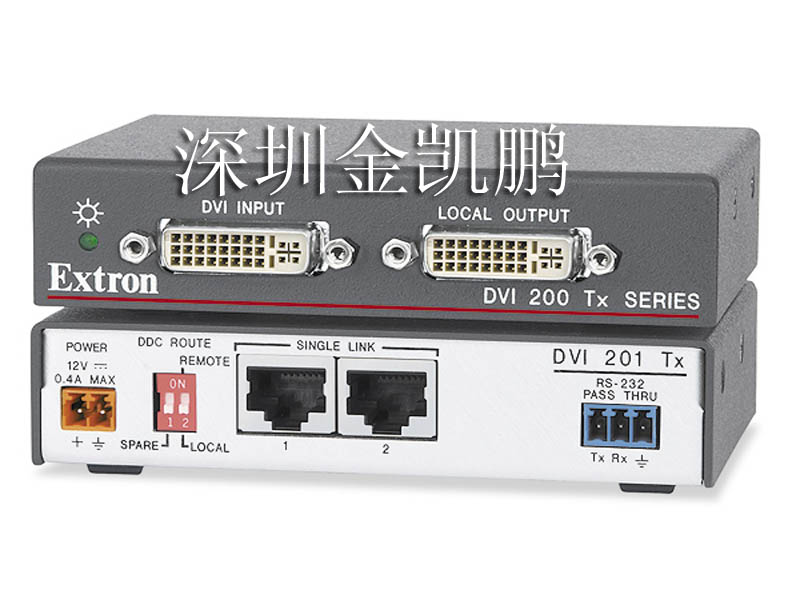

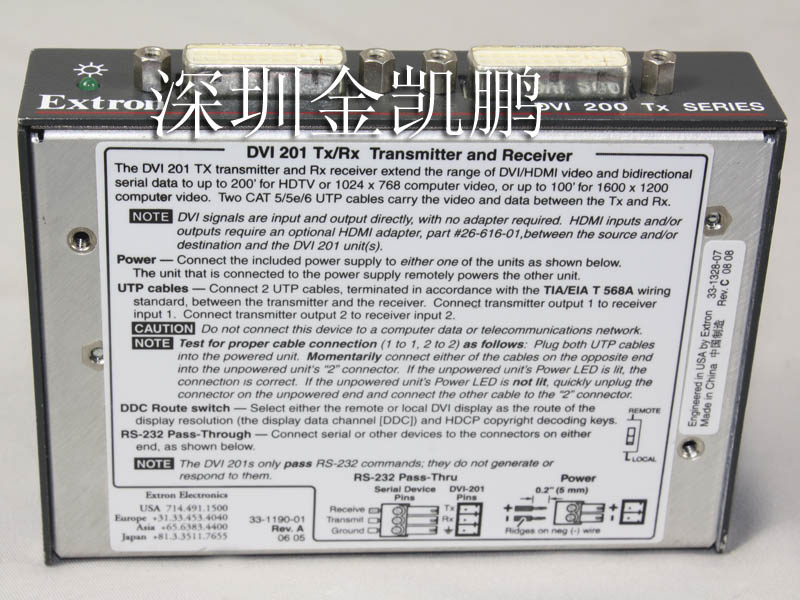

Video input and loop through — transmitters
Number/signal type 1 single link DVI-D (or HDMI*) input
1 single link DVI-D (or HDMI*) local loop-through
Connectors

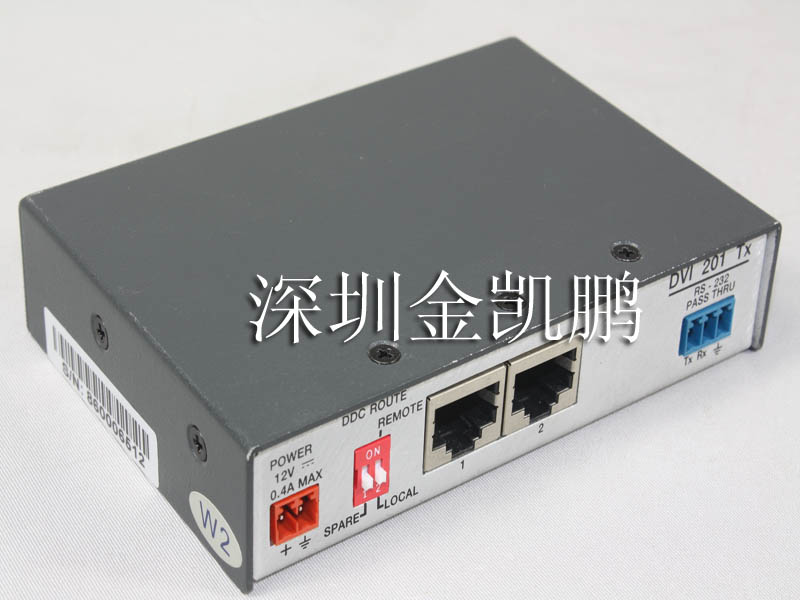

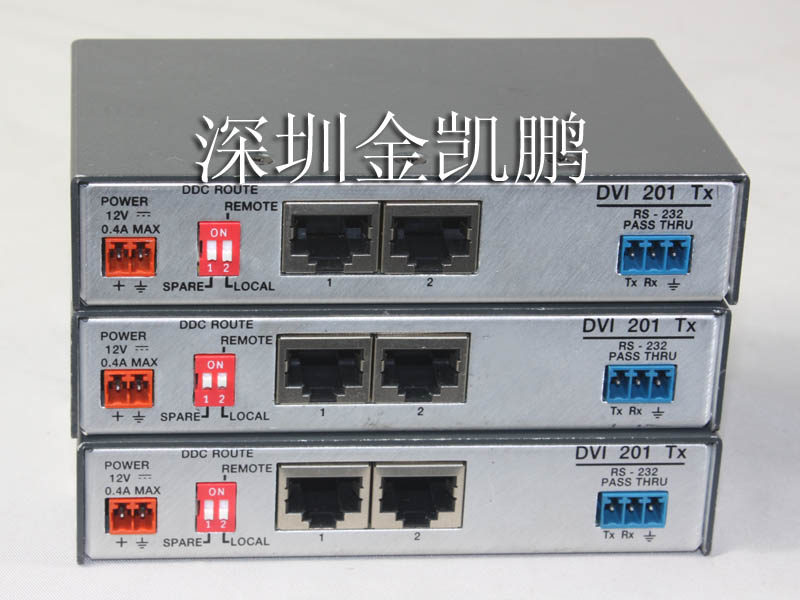

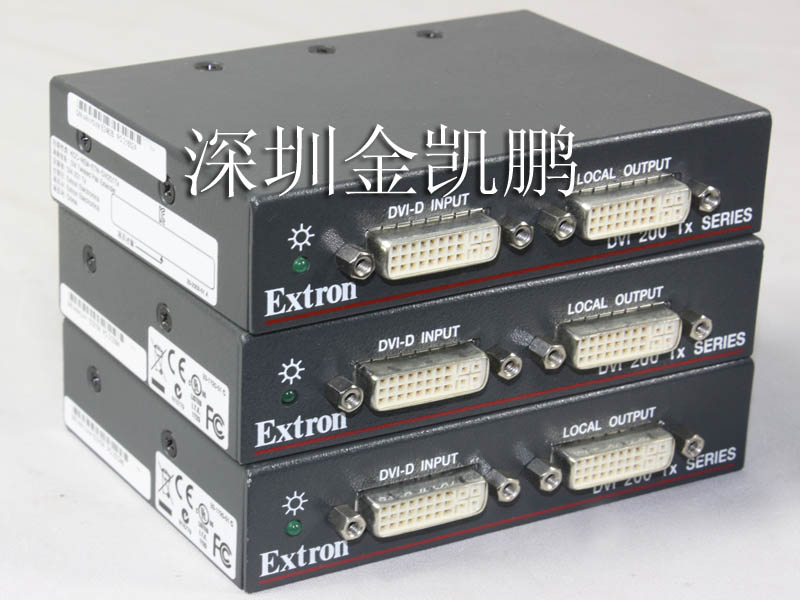

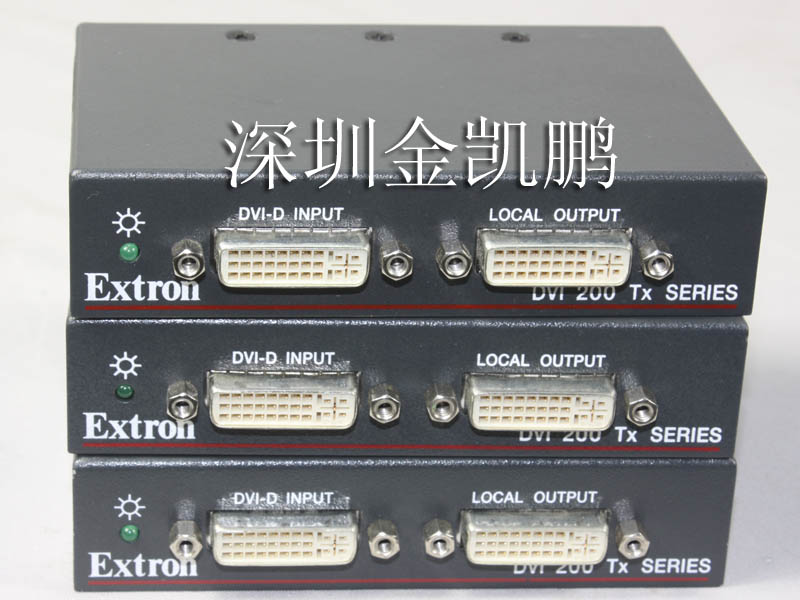

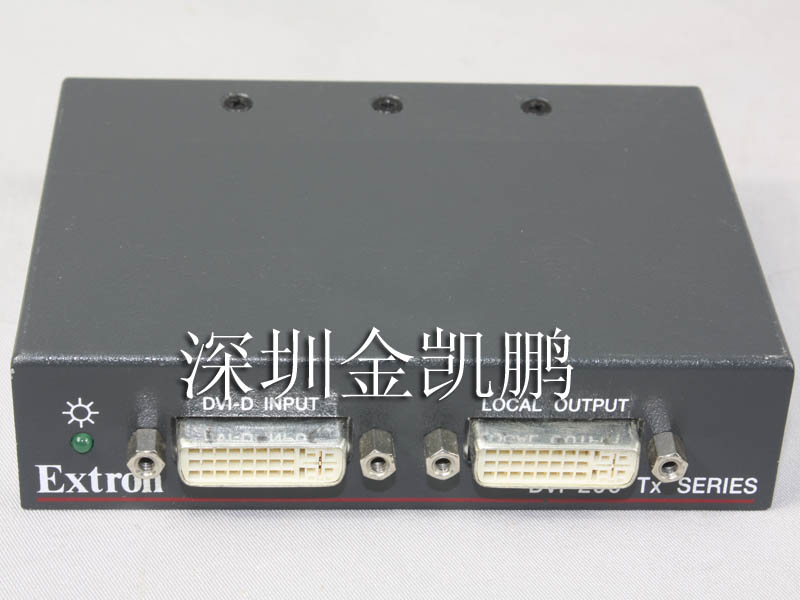

DVI 201 Tx 2 female DVI-D
Interconnection between transmitter and receiver

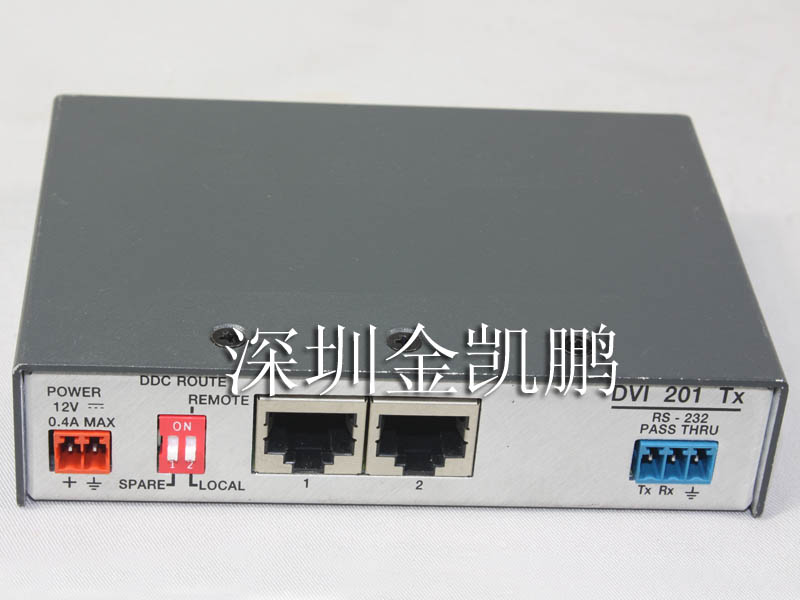

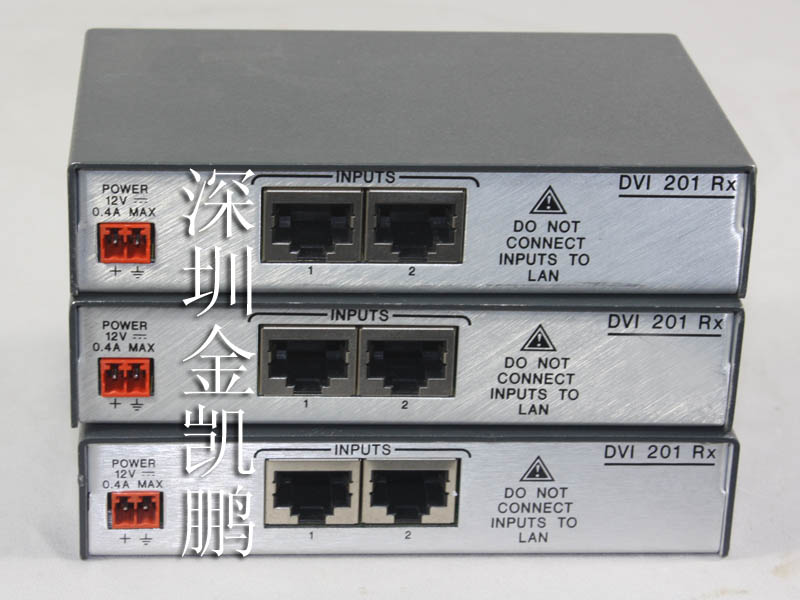

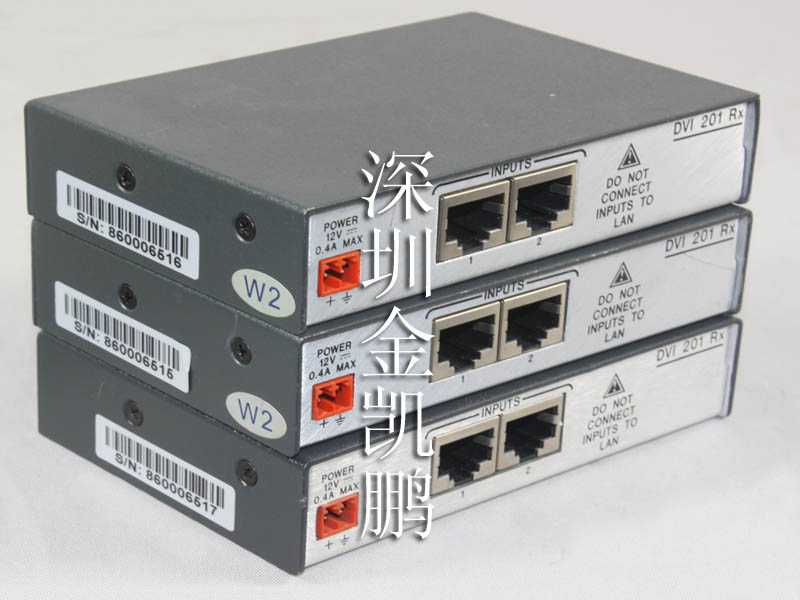

Connectors 2 female RJ-45 per unit for 2 cables connecting the transmitter and receiver
Termination standards TIA/EIA T568A or T568B
Signal transmission distance
1920x1200 or 1080p @ 60 Hz
Extron STP201 cable Up to 150'' (45 m)
CAT 5/5e/6 STP Up to 125'' (38 m)
CAT 5/5e/6 UTP Up to 100'' (30 m)
1024x768 or 720p/1080i @ 60 Hz
CAT 5/5e/6 UTP or STP or Extron STP201 Up to 200'' (60 m)
NOTE The transmission distance varies greatly depending on the signal resolution and on the type of cable, graphics card, and display used in the system.
NOTE Shielded twisted pair cable provides added protection from outside interference and increases overall signal transmission distance. Extron strongly recommends using shielded twisted pair for optimal performance.

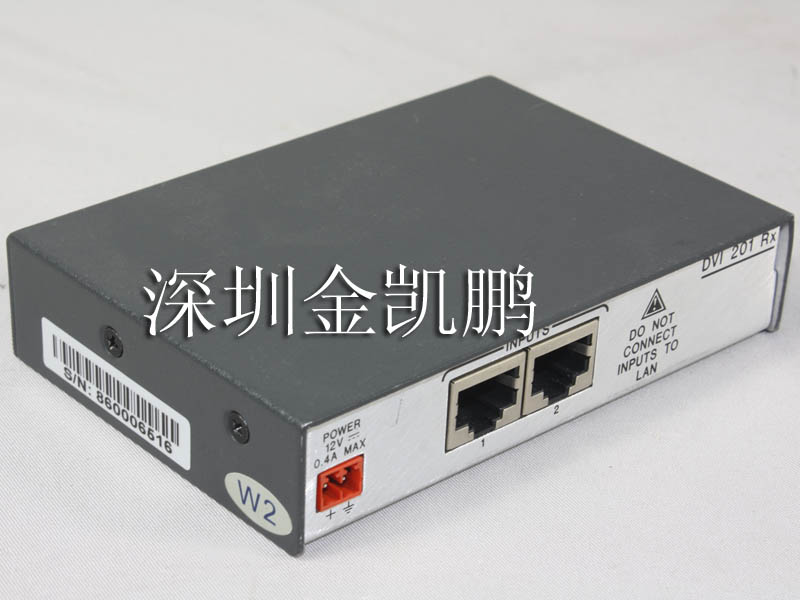

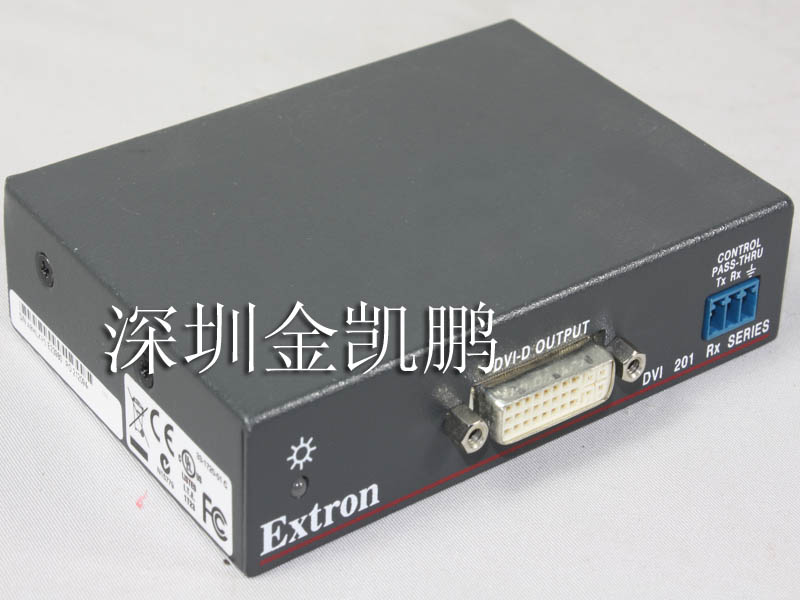

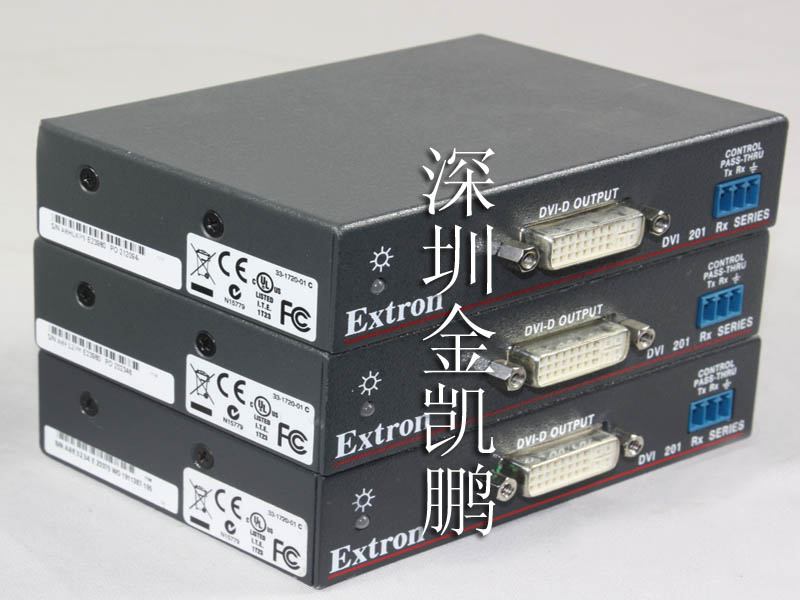

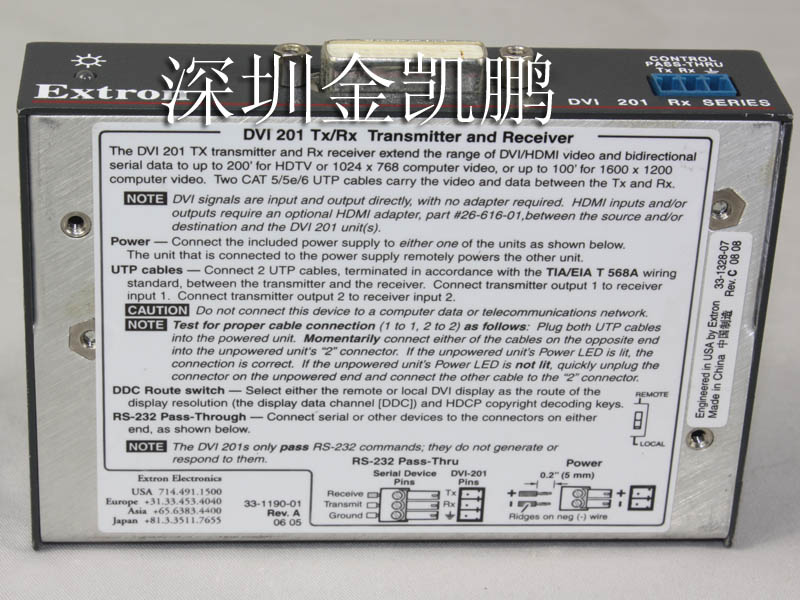

Video output — receivers
Number/signal type 1 single link DVI-D (or HDMI*)
Connectors

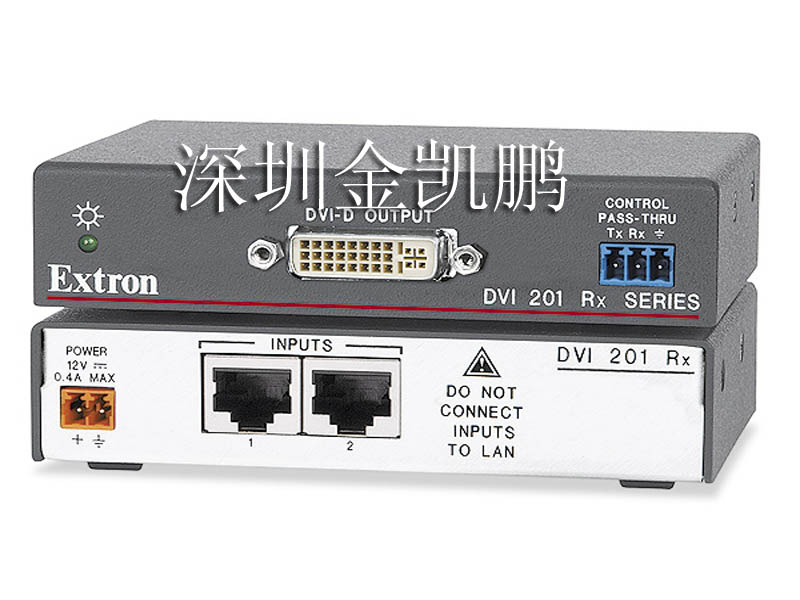

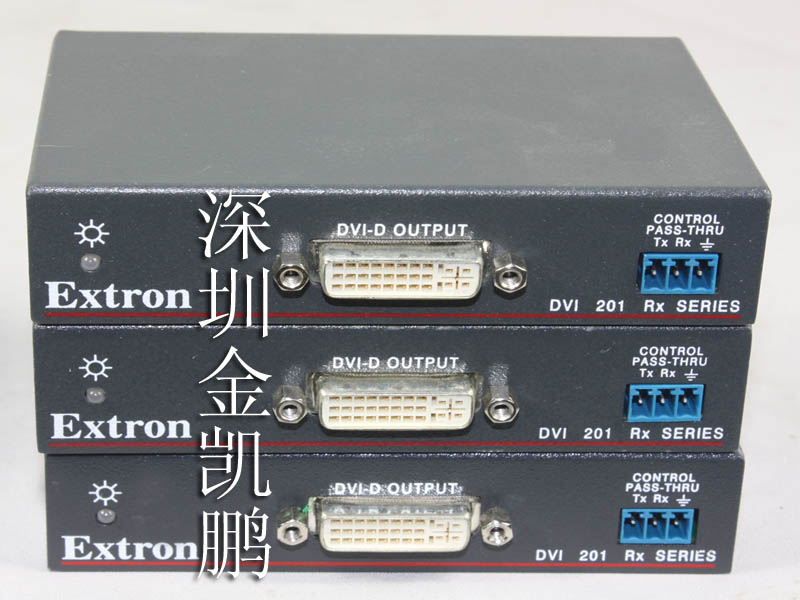

DVI 201 Rx 2 female DVI-I
Control/remote — external device (pass-through)
Serial control port input
Transmitter RS-232 via (1) 3.5 mm, 3 pole captive screw connector
Receiver 1 set of proprietary signals on a female RJ-45 jack
Serial control port output
Transmitter 1 set of proprietary signals on a female RJ-45 jack
Receiver RS-232 via a 3.5 mm, 3 pole captive screw connector
NOTE Protocol is mirrored between the transmitter and the receiver.
Serial control pin configurations Captive screw connectors: 1 = Tx, 2 = Rx, 3 = GND
General
Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts
Power consumption
DVI 201 Tx 2.8 watts, 12 VDC
DVI 201 Rx 4.0 watts, 12 VDC
NOTE Each transmitter or receiver can be powered either locally by an external power supply or remotely by receiver or transmitter on the other end of the CAT 5/5e/6 or Extron STP201 cable.
Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling Convection, no vents
Thermal dissipation 9.5 BTU/hr
Mounting
Rack mount Yes, with optional 1U rack shelf
Furniture mount Yes, with optional through-desk mounting kit
Pole mount Yes, with optional mounting kit
Enclosure type Metal
Enclosure dimensions 1.0" H x 4.3" W x 3.0" D (quarter rack wide)
(2.5 cm H x 10.9 cm W x 7.6 cm D)
(Depth excludes connectors.)
Product weight 0.5 lbs (0.3 kg)
Shipping weight 3 lbs (2 kg)
Vibration ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety CE, c-UL, KCC, UL
EMI/EMC CE**, C-tick, FCC Class A**, ICES, VCCI
NOTE **CE and FCC testing is conducted with STP (shielded twisted pair) cable.
Warranty 3 years parts and labor
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.
