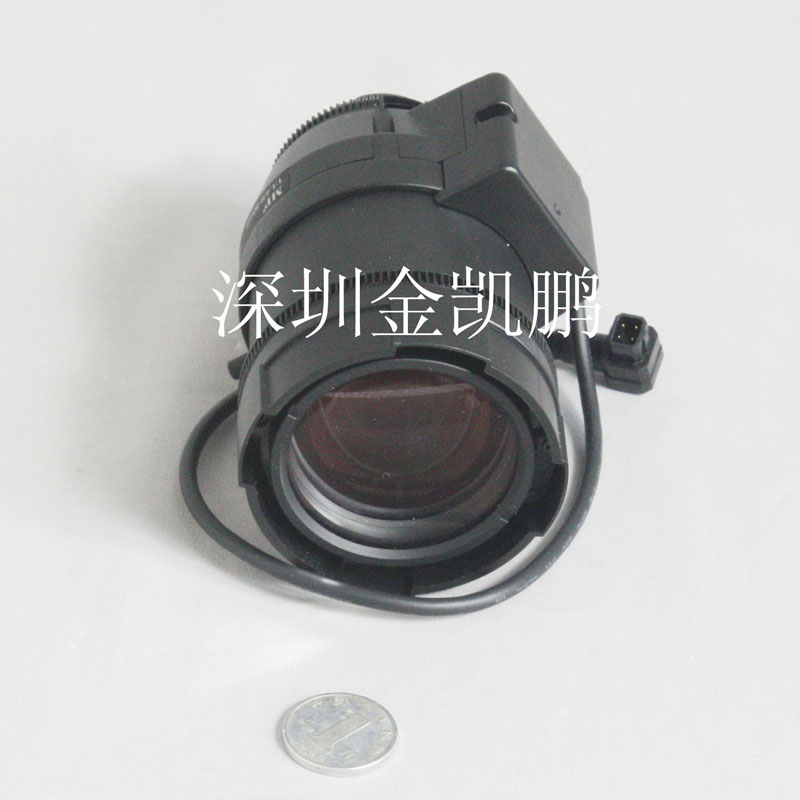

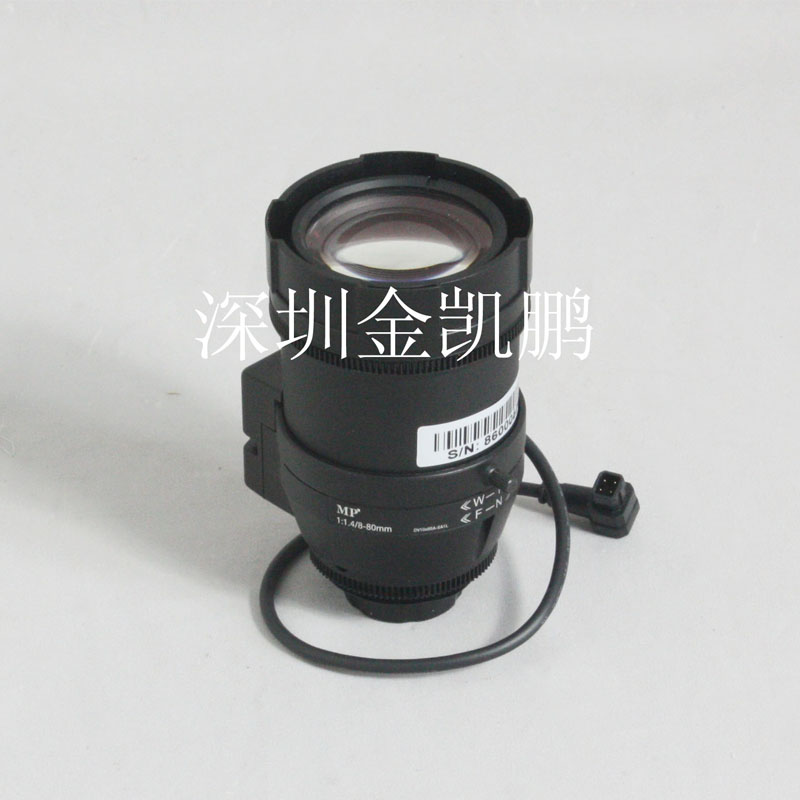

FUJINON(富士能鏡頭) 鏡頭 DV10X8SA-SA1L

FUJIFILM
FUJINON CCTV LENS
HD Vari-Focal（8-80mm）
DV10X8SA-SA1L
FUJINON DV10X8SA-SA1L
Iris Range:f1.4-t360(Equivalent to F360)
Operation
FUJINON DV10X8SA-SA1L Zoom:Manual
FUJINON DV10X8SA-SA1L Focus:Manual
lris:Auto(DC type)﹡1
FUJINON DV10X8SA-SA1L Angle Of View(HxV)
1/2＂WIDE:44°21＂x33°25＂ TELE:4°38＂x3°30＂
1/3＂WIDE:33°25＂x25°06＂ TELE:3°30＂x2°38＂
1/4＂WIDE:22°20＂x16°50＂ TELE:2°20＂x1°45＂

FUJINON DV10X8SA-SA1L Angle Of View(Hxv)Aspect Ratio 16:9
1/2＂WIDE:48°11＂x27°20＂ TELE:2°52＂x5°02＂
1/3＂WIDE:36°22＂x20°31＂ TELE:3°48＂x2°09＂
1/4＂WIDE:24°19＂x13°49＂ TELE:2°33＂x1°26＂

FUJINON DV10X8SA-SA1L Focusing Range(From Front Of The Lens)(m) ∞-1.5
Object Dimensions at M.O.D.(HxV)(mm)
1/2＂WIDE:1247X918 TELE:148X111
1/3＂WIDE:918X681 TELE:111X83
1/4＂WIDE:604X453 TELE:74X56

FUJINON DV10X8SA-SA1L Object Dimensions at M.O.D.(HxV)(mm) Aspect Ratio 16:9
1/2＂WIDE:1369X744 TELE:161X91
1/3＂WIDE:1005X554 TELE:121X68
1/4＂WIDE:659X371 TELE:81X45

FUJINON DV10X8SA-SA1L Back Focal Distance(in air)(mm):15.61
Exit Pupil Position(From Lmage Plane)(mm):491
Filter Thread(mm):-
Mount:c
FUJINON DV10X8SA-SA1L Mass(g):160
Coil Resistance :Drive Coil 190Ω Damping Coil 1,150Ω
Current COnsumption 23mA(Max)at DC 4V
Remarks:.With Metal Mount
(﹡1)When power is turned off,iris will automatically close.
DV10X8SA-SA1L:Long Cable Type(230mm)
