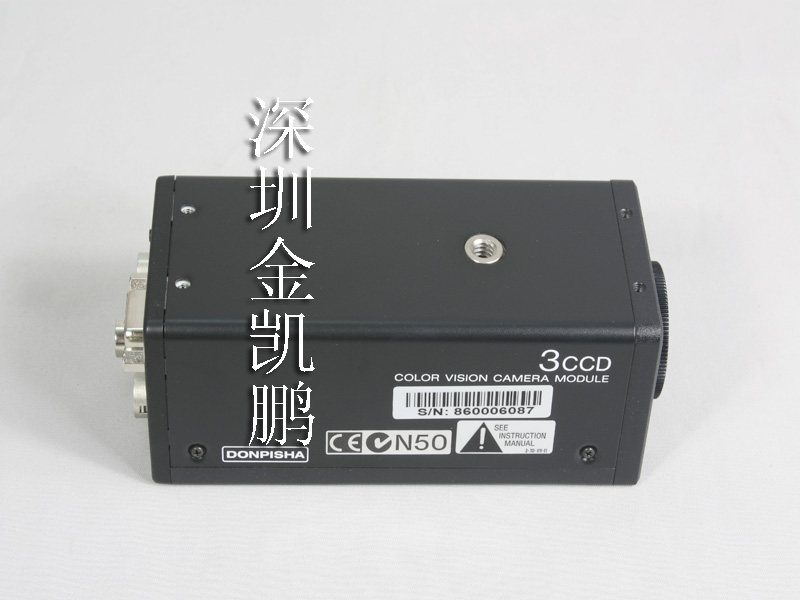

SONY（索尼） 彩色3CCD攝像機 XC-003/003P

OUTLINE FEATURES
XC-003/003P
SONY 彩色3CCD攝像機The XC-003/003P is a compact 3CCD RGB color camera module designed for
machine vision and image processing applications.

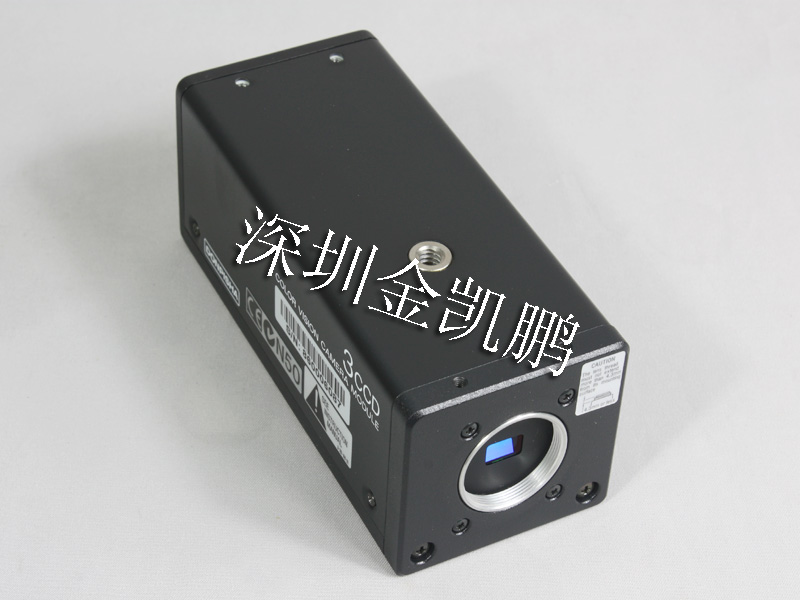

SONY 彩色3CCD攝像機The introduction of a 1/3-inch CCD prism block enables the XC-003/003P to
use with the standard C mount lens that is widely used in connection with an
industrial camera.
SONY 彩色3CCD攝像機The use of a C mount lens not only enables the selection of various lenses
but also facilitates the installation of an optical instrument such as a microscope.
SONY 彩色3CCD攝像機The XC-003/003P has no RGB shift because of Co-Site Sampling System,
which captures picture information accurately. Since each R/G/B signals has
768 x 494(NTSC)/752 x 582(PAL)pixels, the XC-003/003P horizontal resolution
reaches three times as high as that of a conventional 1CCD color camera
(Sony''s XC-711). Thus, the picture that is excellent in resolution and in color
reproducibility of the XC-003/003P can be used in the visual inspection
system as well as image processing.Additionally the RGB signal is
controllable by inputting external HD/VD pulses.
For obtaining a frame still image of moving object a strobe is useful, and for a
field still image,E-DONPISHA?
,an asynchronous trigger shutter function is
convenient. These functions can be used for inspecting crack of printed matter,
fruits and vegetables,semiconductor wafers,and LCD color filter

SONY 彩色3CCD攝像機FEATURES
? 3CCD C-mount
? Co-Site Sampling
? 1/3" Hyper HAD CCD
? High resolution 570 TV lines, RGB 756/739 pixels each

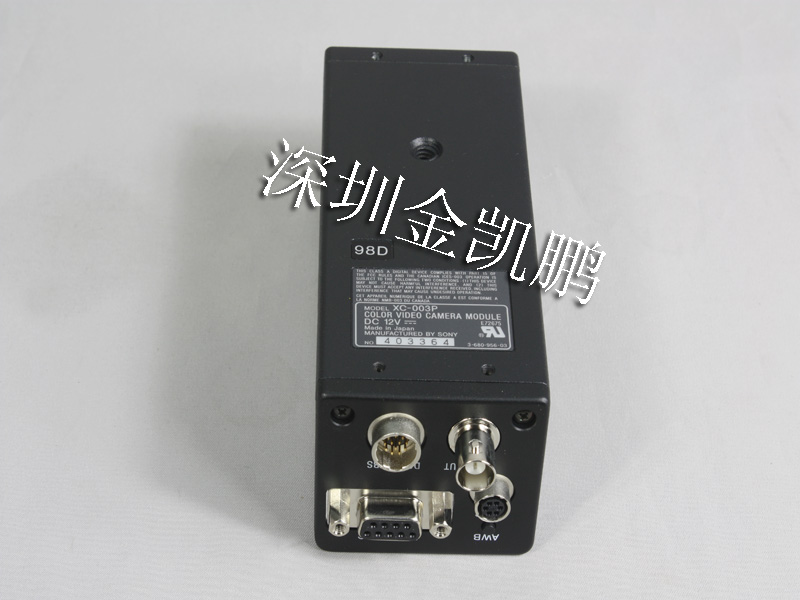

? RGB, Y/C, and VBS signals can be output simultaneously.
? HD/VD or VS external sync available
? E-DONPISHA?
-Asynchronous shutter
? Internal sync Restart Reset
? One push, automatic white balance
? On-Screen Menu
? Color-Bar
? Small, one package 50(H) x 56(W) x 128(D) mm
