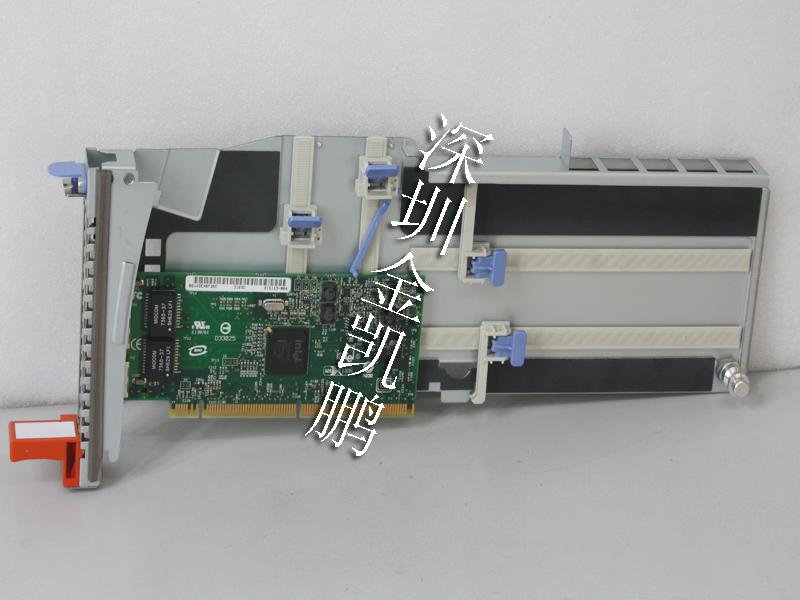

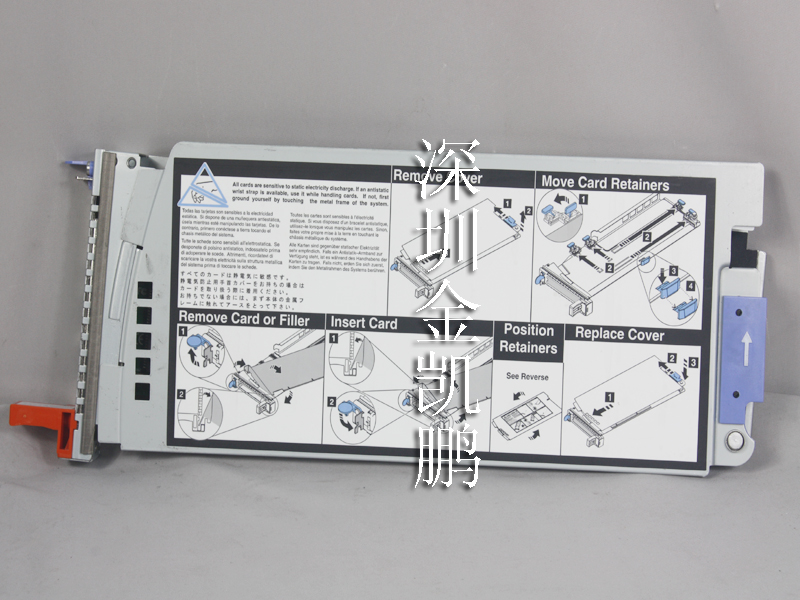

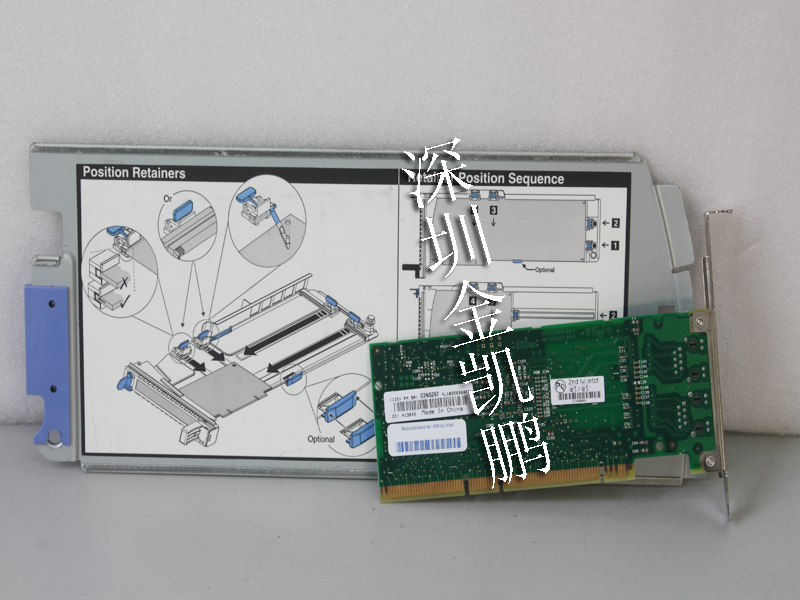

IBM 2-Port 10/100/1000 Base-TX Ethernet PCI-X適配器卡 03N5297

2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter (FC 1983, 1990, 5706; CCIN 5706)
Learn about the specifications and LEDs for the 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter.

The 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter is a full duplex, dual ported, gigabit Ethernet adapter that can be configured to run each port at 10, 100, or 1000 Mbps data rates. The adapter connects to the system using a PCI or PCI-X bus and connects to a network using standard unshielded twisted pair (UTP) cable for distances of up to 100 meters. AIX Network Installation Management (NIM) boot capability is supported with this adapter. The adapter conforms to the IEEE 802.3ab 1000 Base-T standard. The adapter also supports jumbo frames when running at the 1000 Mbps speed.

Adapter LED
The LEDs on the adapter provide information about the card''''s operation status. The LEDs are visible through the adapter''''s mounting bracket and, when lit, indicates the following conditions:
LED Light Description
Link Speed Off 10 Mbps
Green 100 Mbps
Orange 1000 Mbps
Link Green Good link
Off No link: could indicate a bad cable, bad connector, configuration mismatch, or not selected
Blinking Indicates data activity
The following figure shows the adapter LEDs and RJ-45 connector.

Figure 1. 2-Port 10/100/1000 Base-TX Ethernet PCI-X Adapter

1
ACT/LNK LED
2
RJ-45 connector
3
Link Speed LED
Adapter Specifications
Item
Description
FRU number
5706 is 03N5297* or 00P6131**
1983 is 03N5298* or 80P6450**
1990 is 03N5531* or 03N4701** (low profile bracket)
* Designed to comply with RoHS requirement.
** Not designed to comply with the RoHS requirement.
I/O bus architecture
PCI 2.2 and PCI-X V1.0a compliant
Busmaster
Yes
Maximum number
For system-specific adapter placement information, see the PCI adapter placement for machine types 82xx and 91xx or the PCI adapter placement for machine type 94xx topic collections. .
Adapter size
PCI short form
Connector information
RJ-45
Wrap plug
RJ-45, part number 03N6070
Cables
Customers supply the cables. For best performance, use cables that meet Cat 5e cabling standards, or later.
If you are installing a new feature, ensure that you have the software required to support the new feature and that you determine if there are any existing prerequisites. To do this, use the IBM? Prerequisite Web site at http://www-912.ibm.com/e_dir/eServerPrereq.nsf.
